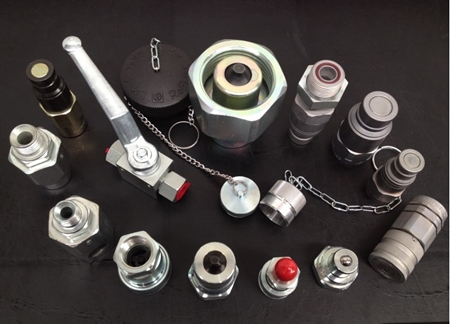

Fluid Connectors part numbers are based on basic description of thread Style, Shapes and Sizes.
Note Fluid Connectors refers to thread sizes only, not a dash size, as this is a universal language,
Important our part number system is written in alphabetical order, JIM before UNM etc
Please note our catalogue also works in an alphabetical sequence.
Examples:
7/8" JIC Male x7/8" UNO Male 90 degree Compact Extension 73mm
Part No = JIM-UNM-90C-1414 E73
3/4" NPT Male Drop Tee (Branch) Tee's are read from clockwise from the left
Part No = NTF-NTF-NTM-121212
3/8" NPT Female Cross
Part No = NTF-NTF-NTF-NTF-06060606

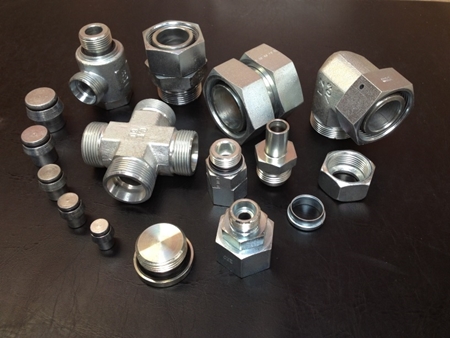

Reference guide of Fluid Connectors thread style & descriptions
|
BBB |
BSP Banjo Bolt |
|
MIM |
Metric ISO Male |
|
|
|
BBM |
BSP Bulkhead Male |
|
MKF |
Metric Komatsu Female |
|
|
BFF |
BSP Flat face Female |
MKM |
Metric Komatsu Male |
|
|
BFM |
BSP Flat face Male |
|
MLF |
Metric Light Female |
|
|
|
BJF |
BSP JIS Female |
|
MLM |
Metric Light Male |
|
|
|
BJM |
BSP JIS Male |
|
MOF |
Metric O-ring Female |
|
|
|
BLN |
BSP Lock Nut |
|
MS00 |
Multi Spiral Hose Ferrule |
|
|
BPF |
BSP Parallel Female |
|
MSM |
Metric Stud Male |
|
|
|
BPM |
BSP Parallel Male |
|
NSF |
NPT Swivel Female |
|
|
|
BSF |
BSP Swivel Female |
|
NTF |
NPT Tapered Female |
|
|
|
BTF |
BSP Tapered Female |
NTM |
NPT Tapered Male |
|
|
|
BTM |
BSP Tapered Male |
|
OR-ORF |
O-Ring ORFS |
|
|
|
BVB |
Ball Valve BSP (high pressure ) |
OR-UNM |
O-Ring UNOM |
|
|
|
CAP-F61 |
CAP Code 61 Flange |
|
OBM |
ORFS Bulkhead Male |
|
|
CAP-F62 |
CAP Code 62 Flange |
|
OLN |
ORFS Lock Nut |
|
|
|
CAT-F62 |
CAT Ring |
|
|
ORF |
ORFS Female |
|
|
|
CLK-F61 |
Clamp Kit Code 61 |
|
ORM |
ORFS Male |
|
|
|
CLK-F62 |
Clamp Kit Code 62 |
|
ORW-BSP |
O-ring and Washer BSP |
|
|
CLS-F61 |
Clamp Split Code 61 |
|
ORW-MET |
O-ring and Washer Metric |
|
|
CLS-F62 |
Clamp Split Code 62 |
|
PLT |
Push Lock Tail |
|
|
|
DSB |
Dowty Seal BSP |
|
SAF |
SAE Female |
|
|
|
DSM |
Dowty Seal Metric |
|
SAM |
SAE Male |
|
|
|
|
JBM |
JIC Bulkhead Male |
|
SF1 |
Swage Ferrule Type1AirconHose |
|
JFF |
JIC Fixed Female |
|
SMS |
SAE Male Swivel |
|
|
|
JIF |
JIC Female |
|
SN01 |
Swage Ferrule Non-Skive 1 Wire |
|
JIM |
JIC Male |
|
|
SN02 |
Swage Ferrule Non-Skive 2 Wire |
|
JLN |
JIC Lock Nut |
|
SN03 |
Swage Ferrule Non-Skive R3 |
|
|
JTN |
JIC Tube Nut |
|
SN07 |
Swage Ferrule 100R7 |
|
|
JTS |
JIC Tube Sleeve |
|
SS01 |
Swage Ferrule Skive 1 Wire |
|
|
LPT |
Low Pressure Tail |
|
SS02 |
Swage Ferrule Skive 2 Wire |
|
|
MBB |
Metric Banjo Bolt |
|
ST |
Steel Teflon Ferrule R14 |
|
|
MBJ |
Metric BanJo |
|
STB |
Swage Tail Braided |
|
|
|
MCF |
MetricChineseFemaleFlatFace |
STM |
Swage Tail Multispiral |
|
|
MFF |
Metric French GAZ Female |
TCL-S |
Tube Clamp Single |
|
|
|
MFM |
Metric French GAZ Male |
TCL-D |
Tube Clamp Double |
|
|
|
MHM |
Metric Heavy Male |
|
TWF |
Tube Weld Female |
|
|
|
MHF |
Metric Heavy Female |
|
UNF |
UNO Female |
|
|
|
MIF |
Metric ISO Female |
|
UNM |
UNO Male |
|
|
Reference For Fluid Connectors Shape Types
|
45C |
45 Degree Compact |
|
|
|
90C |
90 Degree Compact |
|
|
90S |
90 Degree Swept |
|
|
CS |
Counter Sunk ( Plugs Only ) |
